- Operation mode AP, Client, WDS Frequence 5,4 - 5.825 GHz
- DHCP yes Transmission speed 300 Mbps
- Standards 802.11a/n Chipset Atheros
- TX Power regulation yes Max.output power 27 dBm
- Sensitivity -96 dBm Modulation OFD

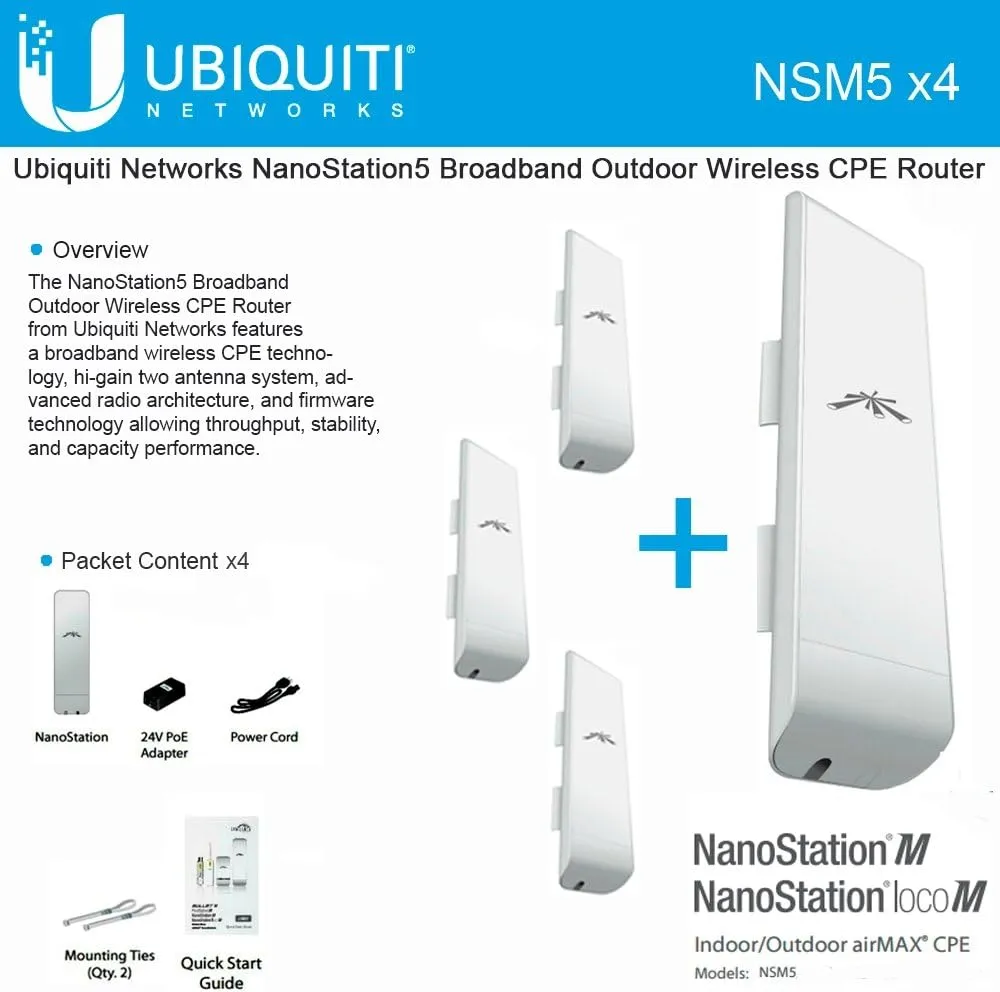

NanoStation M5: 5GHz Hi Power 2x2 MIMO AirMax TDMA Station. The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150 Mpbs real outdoor throughput and up to 15km range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.
